BIABooster CE Pack

Overview

The BIABooster CE pack is a plug-in for commercial Capillary Electrophoresis Instruments. It allows to take full advantage of the BIABooster technology and its unrivalled sensitivity for DNA analysis, down to 10 pg/µL per DNA fragment, even for unpurified samples, and its unique DNA size range, up to 150 kbp.

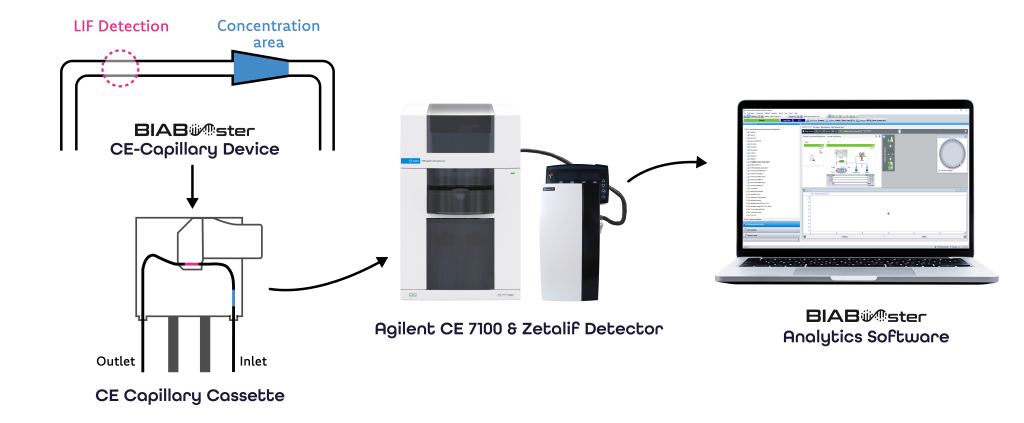

Composition of the BIABooster-CE platform

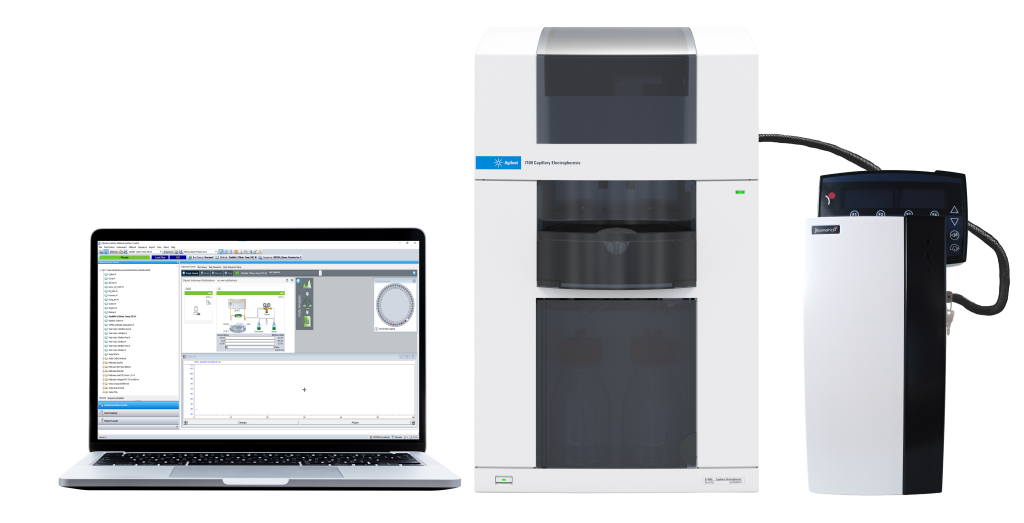

The proprietary BIABooster capillary device is the core of this innovative analytical platform, enabling inline concentration and separation of DNA. It is mounted inside a cassette also fitting the Agilent CE7100 instrument and Zetalif detectors. This equipment achieves full automation of the analytical methods.

The BIABooster Analytics software has been developed to analyse raw fluorescence data and to translate them into fully informative concentration distribution according to DNA size. This intuitive and user-friendly software contains key features for automating or streamlining QC of the experiments, data analysis, sample comparisons, export of graphs and data, and reporting.

Main Analytical Specifications

Analytical specifications	DNA 1K kit cfDNA kit*	DNA 10K kit	Other size windows, between 0.1 and 100 kbp Please, Contact us
Sizing range	0.1-1.5 kbp	1-10 kbp	Please, Contact us
Sample type	DNA 1K: purified DNA cfDNA: plasma or other biological fluids	Purified DNA
Sample volume	10 µL	10 µL
Limit of detection, standard method (S/N=3)	10 pg/mL at 1 kbp 100 pg/mL at 100 bp	10 pg/mL at 10 kbp 30 pg/mL at 1 kbp
Limit of detection, multiple injection method**	1 pg/mL at 1 kbp 10 pg/mL at 100 bp	1 pg/mL at 10 kbp 3 pg/mL at 1 kbp
Dynamic range	1000X	300X

* cfDNA kit has the same analytical specifications than DNA 1K kit.
** multiple injection method is not available with cfDNA kit.
